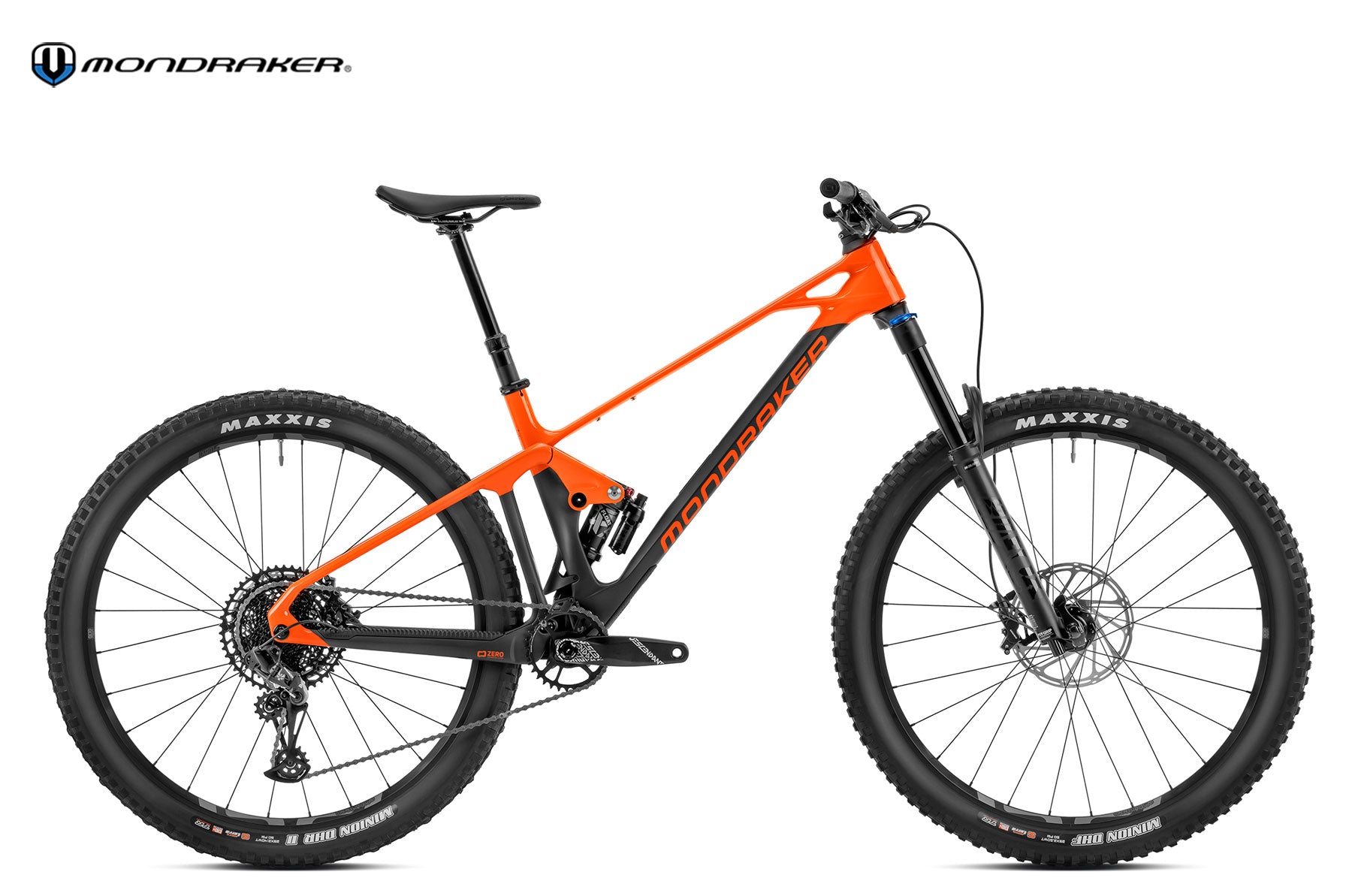

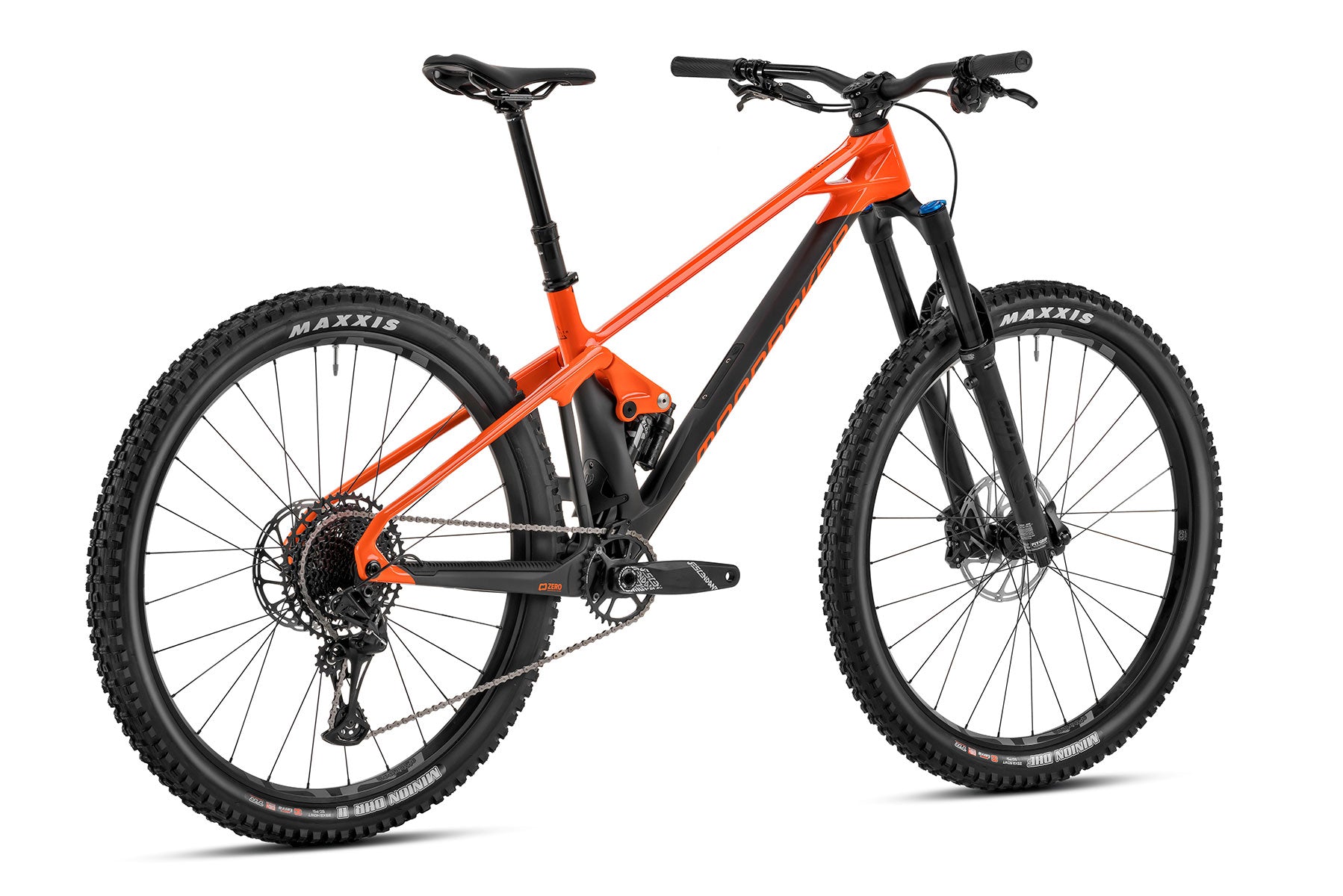

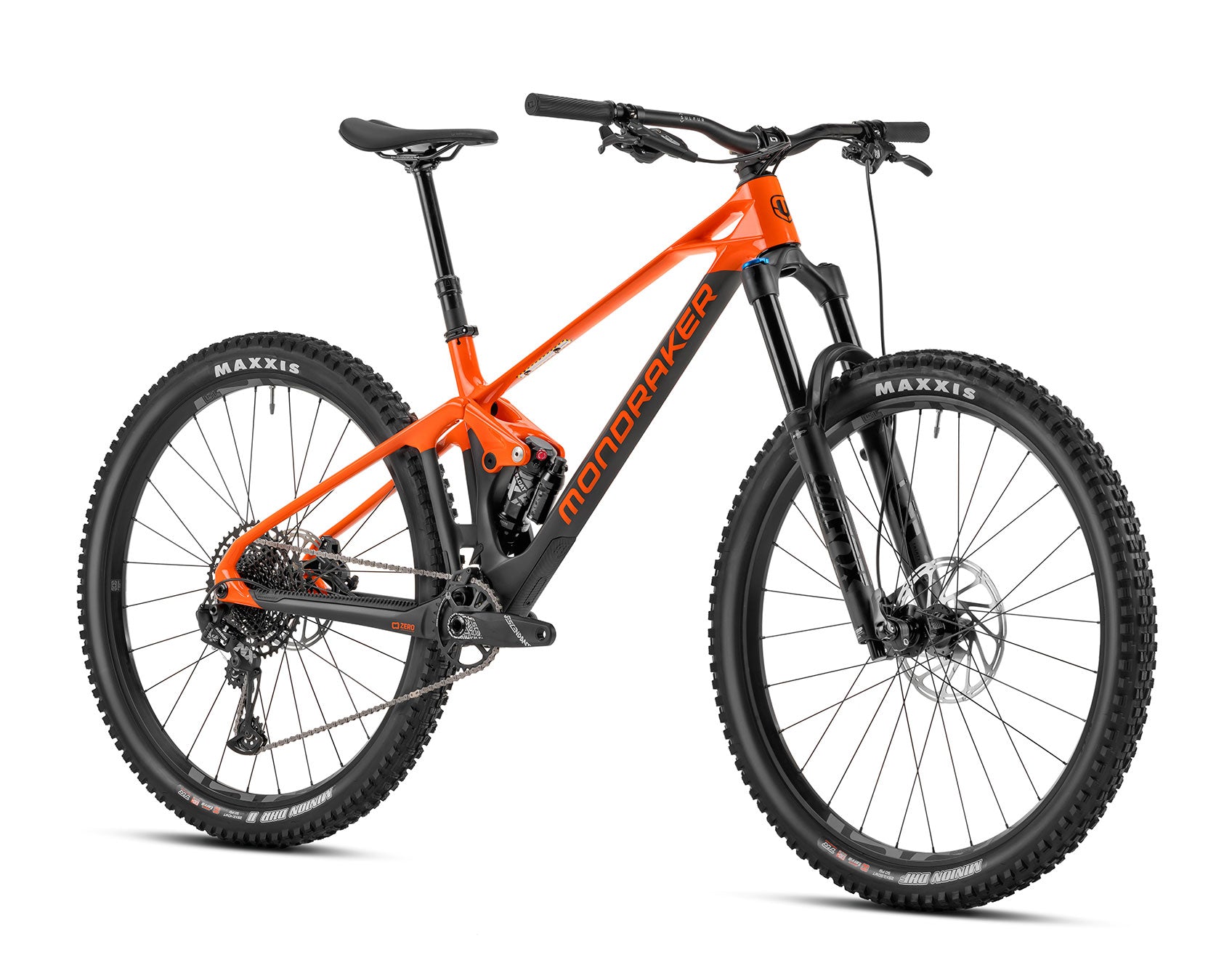

The FOXY CARBON R is the cheapest of all carbon models. And yet it has the same frame as the XR and RR Carbon. It offers a Fox chassis with 160mm travel at the front and 150mm at the rear, a SRAM NX Eagle 12-speed drive, e*thirteen LG1 Plus Enduro wheels, SRAM G2 R 4-piston brakes and ONOFF components including a retractable Pija seat post. Adjustable geometry is optional for this bike.
FRAME
Foxy 29 Stealth Air full carbon, zero suspension system, 150mm travel, forward geometry, aluminum CSC rocker with carbon middle section, Boost 12x148mm rear axle, butted head tube, 73mm BSA bottom bracket, specific design for 1-speed drives, HHG internally routed cables and Cables, sealed "Enduro MAX" bearings, splash guard for dampers, ISCG 05, special protective elements for the frame. *Geometry Kit optional.
Size
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
MUTE
Fox Float-X LV Performance, 205x65mm. Settings: compression via two-stage lever, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 30x8mm
DAMPER SETTINGS
Compression level: low, rebound level: low, volume spacer 0.6
FORK
Fox 36 29 Float Performance GRIP, 160mm, 3 position, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: Sweep Adjust compression, low-speed rebound, air pressure
TAX RATE
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing
STEM
ONOFF Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
HANDLEBAR
ONOFF Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
HANDLES
ONOFF Desert, lock-on single, 135mm
SEAT POST
ONOFF Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
SADDLE
SDG BEL-AIR 3.0, LPU foam, steel struts
FRONT BRAKE
Sram G2 R, 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, organic brake pads with steel backplate
REAR BRAKE
Sram G2 R, 4-piston brake caliper, one-piece 180mm 6-hole Centerline brake disc, organic brake pads with steel backplate
BRAKE LEVER
Sram G2 R, grip width adjustable without tools
RIMS
e*thirteen LG1 Enduro, IW30 Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, 28 spokes
SPOKE
e*thirteen Custom Hive, triple butted steel, black, aluminum nipples, nipple washers
HUB FRONT
e*thirteen Boost 15x110mm, triple sealed, milled aluminum, IS 6-hole
REAR HUB
e*thirteen Boost 12x148mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole, Shimano freewheel
FRONT TIRES
Maxxis Minion DHF 29x2.5 WT, Tubeless Ready, 3C MAXX TERRA Compound, EXO+ puncture protection, 120 TPI, foldable
REAR TIRE
Maxxis Minion DHR II 29x2.4 WT, Tubeless Ready, 3C MAXX TERRA Compound, EXO+ Protection, 120 TPI, foldable
CRANKS
Truvativ Descendant 6K Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170mm, size L/XL: 175mm
CHAINRINGS
32T, steel, X-Sync 2
INTERNAL BEARING
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram NX Eagle, 12-speed, Powerlock
REAR DERAILLEUR
Sram NX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
SHIFT LEVER
Sram Trigger NX Eagle, 12-speed, X-Actuation 1:1
CASSETTE
Sram XG-1230, 11-50T, 12-speed
DERAILLEUR HANGER
Sram UDH
WEIGHT
14.9kg
