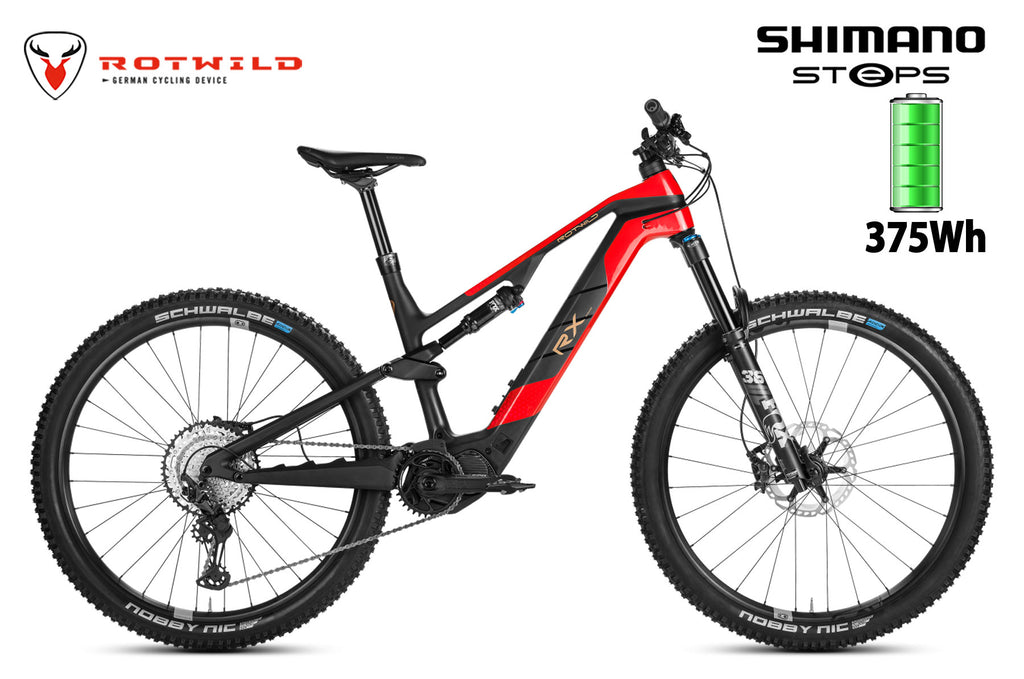

R.X375 PRO

The trail king

Aggressive. Light. Agile. Our R.X375 brings the core of the mountain bike back to eMTB sport. Made for everyone who loves the driving dynamics and performance of an analog mountain bike, but doesn't want to miss out on an electric drive for extra laps. Agility and liveliness are two core competencies; That's why we made our trail king R.X375 particularly light.

What does it matter?

The latest generation of electric motors from Shimano, the EP8, was installed. It weighs just 2,500g, while offering a whopping 85 Nm and 50% less pedaling resistance - a new benchmark in terms of installation space and weight. In combination with the 375 Wh battery, the R.X375 presents itself as an exceptionally light E-MTB, easy to handle and superior on the single trail. The hand-made full carbon frame made of high modulus fibers (HM) plays a key role in this: with excellent stiffness values ​​and low weight, it forms the basis for spectacular riding fun.

The kinematics and geometry of the AGGRESSIVE SERIES have also been optimized for action. The R.X375 allows more movement in the chassis, for bigger jumps and higher speed; The modern geometry with a flat steering angle and a steep seat angle provides a central, balanced seating position for optimal control. The R.X375 follows the motto Back To The Roots - more people, less machines.

Overview:

• Frame & Linkage: Full carbon made from high modulus carbon fibers, handmade
• Suspension fork: 150 mm travel / 110x15 mm / 44 mm axle offset
• Damper: 140 mm travel / 210x50 mm / 21.84 mm (front bushing) / 19.05 mm (rear bushing)
• Front tire diameter: max. 29x2.4 (755x62)
• Rear tire diameter: max. 29x2.4 (755x62)
• Permitted total weight: 130 kg / ASTM 4
• Motor: Shimano EP8 / 2 driving profiles / up to 85 Nm torque
• Battery: IPU375 / 375 Wh / Carbon / 1.9 kg / Quick Release / 4.5 A charger
• Headset with Blocklock steering stop

High modulus carbon

The handcrafted full carbon frame made of high modulus fiber with optimized carbon layer layup offers higher stiffness values ​​with absolutely optimized weight. Linkage and damper yoke are also made entirely of carbon.

DEER IPU375

The target group-specific energy storage device in our Aggressive Series impresses with a battery capacity of 360 Wh and high-performance cell technology (type 21700/5.0 Ah) with a minimal, low-positioned weight of 1.9 kg thanks to the weight-optimized, hand-made carbon housing.

Progressive chassis

Action-optimized driving dynamics with more movement in the chassis, higher speeds and larger jumps with more airtime allow the kinematics of the aggressive series with a progressive spring characteristic at the end of the suspension travel.
