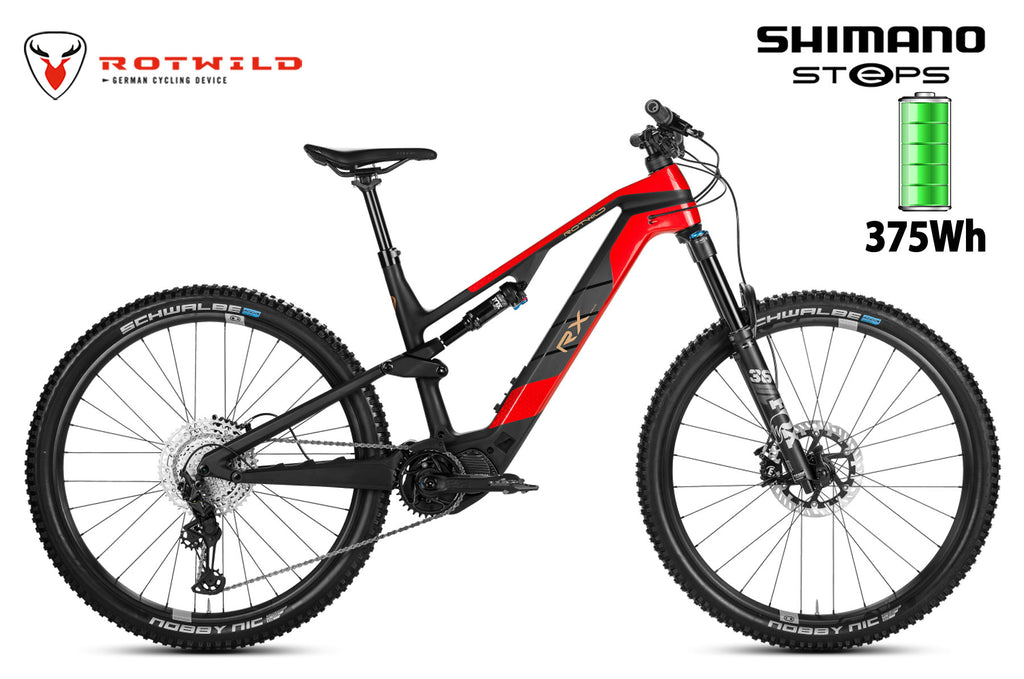

The latest generation of electric motors from Shimano, the EP8, was installed. It weighs just 2,500g, while offering a whopping 85 Nm and 50% less pedaling resistance - a new benchmark in terms of installation space and weight. In combination with the 375 Wh battery, the R.X375 presents itself as an exceptionally light eMTB, easy to handle and superior on the single trail. The hand-made full carbon frame made of high modulus fibers (HM) plays a key role in this: with excellent stiffness values and low weight, it forms the basis for spectacular riding fun.
The kinematics and geometry of the AGGRESSIVE SERIES have also been optimized for action. The R.X375 allows more movement in the chassis, for bigger jumps and higher speed; The modern geometry with a flat steering angle and a steep seat angle provides a central, balanced seating position for optimal control. The R.X375 follows the motto Back To The Roots - more people, less machines.
High modulus carbon
The handcrafted full carbon frame made of high modulus fiber with optimized carbon layer layup offers higher stiffness values with absolutely optimized weight. Linkage and damper yoke are also made entirely of carbon.
Fully integrated cable routing
The cables, which are fully integrated through the cable duct in the down tube and the motor housing, guarantee precise switching processes by avoiding narrow radii, optimal protection and a tidy look.
DEER IPU375
The target group-specific energy storage device in our Aggressive Series impresses with a battery capacity of 360 Wh and high-performance cell technology (type 21700/5.0 Ah) with a minimal, low-positioned weight of 1.9 kg thanks to the weight-optimized, hand-made carbon housing.
Shimano EP8
The Shimano EP8 guarantees maximum acceleration and efficient pedaling with a natural driving experience with just under 2,500 g, 85 Nm, low pedaling resistance, high motor efficiency with low noise levels and seamless fade-out/fade-in at the support limit. The support mode can also be configured using three different maps.
Overview:
- Frame/Linkage: Full carbon made from high modulus carbon fibers, handmade
- Suspension fork: 150 mm travel / 110x15 mm / 44 mm axle offset
- Damper: 140 mm travel / 210x50 mm / 21.84 mm (front bushing) / 19.05 mm (rear bushing)
- Front tire diameter: max. 29x2.4 (755x62)
- Rear tire diameter: max. 29x2.4 (755x62)
- Permitted total weight: 130 kg / ASTM 4
- Motor: Shimano EP8 / 2 driving profiles / up to 85 Nm torque
- Battery: IPU375 / 375 Wh / Carbon / 1.9 kg / Quick Release / 4.5 A charger
- Headset with Blocklock steering stop
Equipment R.X375 CORE
mute
Fox Float DPS Performance
tax rate
ACROS RW375 1.5 headset
Fork
Fox 36 Float Performance
Handlebars
e*thirteen Plus or ROTWILD B280
Stem
e*thirteen Plus or ROTWILD S140
Seat post
e*thirteen Vario Covert Infinite
saddle
ERGON SM10 Stealth
chainring
e*thirteen Direct Mount Chainring
Chain guide
e*thirteen TRS
Rear derailleur
SHIMANO XT 8100
Wheel
Crankbrothers Synthesis Enduro
Tires
SCHWALBE Nobby Nic Evo
Changes and errors excepted.
