Name: Specialized Bicycle Components, Inc.
Address: 5130 Concord Circle Morgan Hill, CA 95037. USA
Website: www.specialized.com
European Manufacturer: No
/
Description

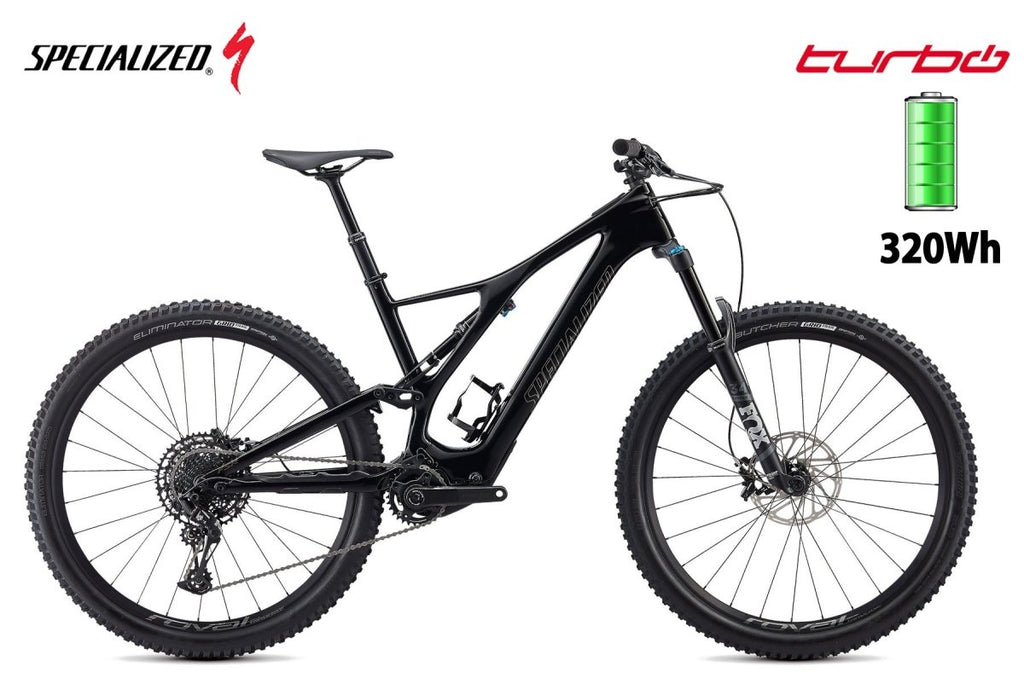

The Levo SL is a new, lightweight generation of e-mountain bike that leverages the fast and versatile platform of our Stumpjumper... and offers just enough power to deliver a completely new riding experience. The Levo SL Comp Carbon comes with a carbon frame, complete FOX suspension and SRAM NX 12-speed drive.
YOU... JUST FASTER... AND MORE ENDURANCE.
The Levo SL is basically a stump jumper with which you can go on long adventures without fear of getting stranded. Three after-work trails instead of just one? No problem! Are you looking for excessive power and range? Then take a look at our Levo and Kenevo. On the other hand, do you want a bike that feels normal or like you with more power for even more trails? This is our Levo SL.
CUSTOMIZE IT TO YOUR NEEDS.
By connecting to our Mission Control app, you can tune the SL 1.1 motor to your riding style, record rides and monitor the battery. The engine even has a built-in power meter that can be transmitted to any ANT+ device. You don't want to connect anything here? Don't worry - with the Turbo Connect Unit (TCU) on the top tube, you have full control uphill and downhill.
• The lightweight, Stumpjumper-inspired carbon frame offers pure riding fun and control.
• The smooth and ultralight SL 1.1 motor doubles your power.
• 150 mm travel front and rear thanks to FOX RHYTHM 34 fork and DPS Performance shock.
- The Levo SL looks like a Stumpjumper and feels exactly like one on the trail. This is no coincidence. We set out to build a Stumpjumper with a little more power and that's exactly what you get - a sidearm frame with great, balanced stiffness and 150mm of well-tuned suspension. The chassis of the Levo SL is made entirely of our light yet strong FACT 11m carbon.
- The lightweight SL 1.1 motor doubles your pedal power with up to 240 watts of additional support. The responsive motor delivers the perfect support with its homogeneous torque curve - matching your normal cadence. And if you do want to ride without support, there is no additional resistance to overcome.
- Are you afraid of getting stranded on the road with an empty battery? No problem. The Levo SL is a first-class mile eater. If you need even more range, our optional range extender increases the mileage by a further 50 percent. In addition, the Mission Control app can use Smart Control to ensure that your battery lasts as long as you want.
- Maximum speed: 25 km/h
Technical specifications
E BIKE
| UI/Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote |
| Wiring harness | Custom Specialized wiring harness w/ charge port |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| Charger | Custom charger, 48V system w/ SL system charger plug |
| engine | Specialized SL 1.1, custom lightweight motor |
WHEELS
| Rear hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
| Inner tubes | Standard, Presta valve |
| Front hub | Specialized, sealed cartridge bearings, 15x110mm spacing, 28h |
| Spokes | DT Swiss Industry |
| Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
| Rear tire | Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" |
DRIVE TRAIN
| Cassette | SRAM NX Eagle PG-1230, 12-speed, 11-50t |
| Crankset | Practice, forged M30, custom offset |
| Chain rings | SRAM X-Sync Eagle, 94 BCD, 30T |
| Chain | SRAM NX Eagle, 12-speed |
| Shift levers | SRAM NX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
COCKPIT
| SeatPost | X-Fusion Manic, infinitely adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm |

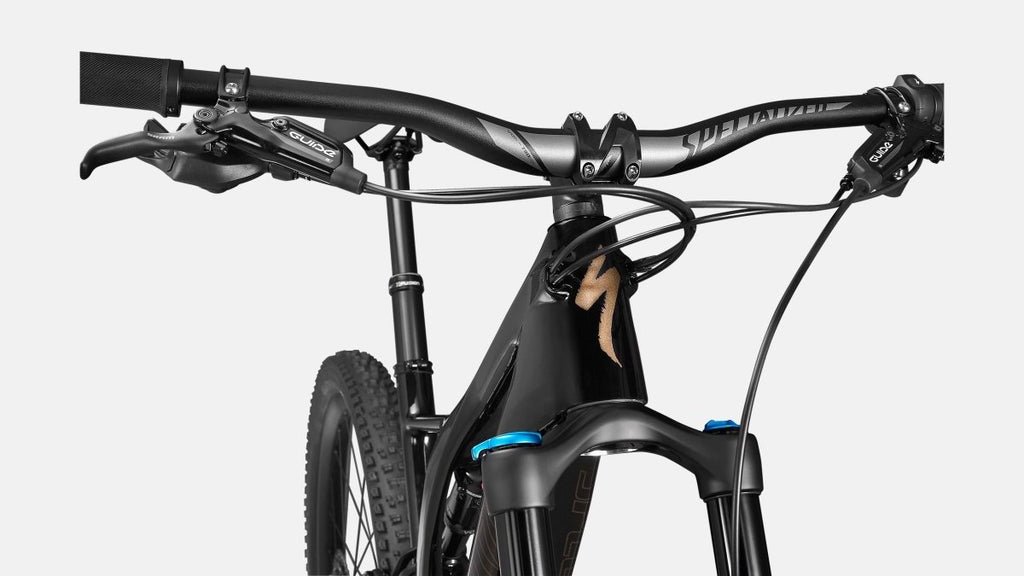

| Handle bars | Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm, |
| Tape | Specialized Trail Grips |
| Stem | Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
FRAMESET
| frame | FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel |
| Seat binders | Specialized bolt type, alloy, 38.6mm |
| Fork | FOX RHYTHM 34 FLOAT 29, GRIP damper, 51mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel |
BRAKES
| Rear Brake | SRAM Guide R, hydraulic disc, 180mm |
| Front brake | SRAM Guide R, hydraulic disc, 200mm |
suspension
| Rear shock | FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune |
* Specifications are subject to change
